Control your music system

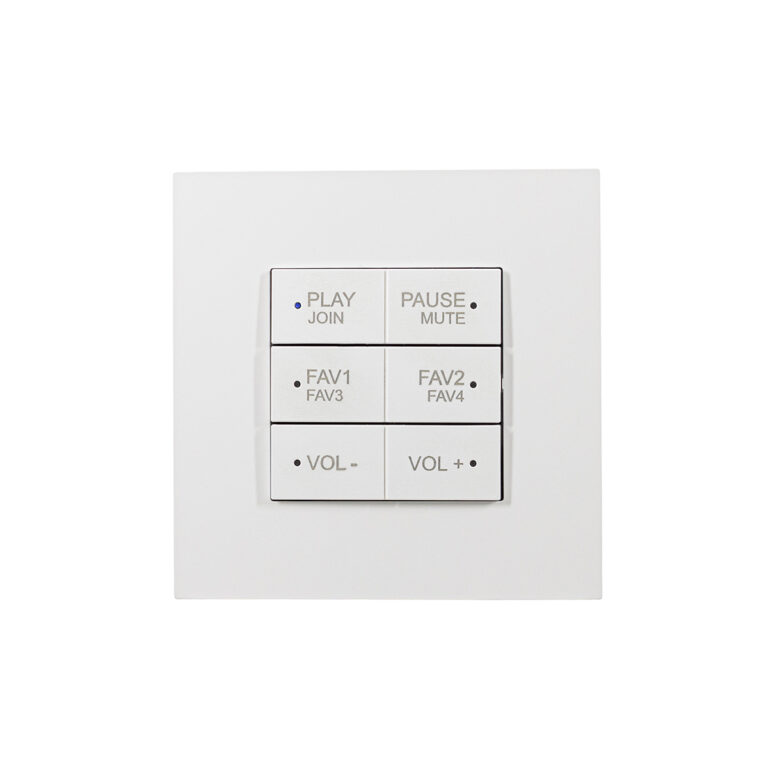

HEOS wall Controller
The wall controller is used for quick and comfortable control of the Denon HEOS multiroom system without the need to use a mobile application.
MAIN Features
- zone wall controller for Denon HEOS or Denon HOME multiroom system
- switch zone on or off (starts last played music with PLAY button)
- volume control up and down including mute sound in zone
- direct call of HEOS Favorits 1 to 4 (internet radio)
- call AUX input (configurable via software)
- adjustable volume steps, 3 option (configurable via software)
- control over TCP/IP protocol (WIFI or wired connection)
- LED feedback - PLAY, STOP and MUTE
- simple software for setup controllers
- NIKO design
The basic functions:
Switch music on or off in the zone; when you press the PLAY button on the remote controller, the last played music starts, including online services such as Tidal or Spotify Connect. The controller can also trigger an external input from the HEOS device in the case of connected external sources such as an FM tuner, CD player or TV audio signal. The external input is activated by holding down the PLAY button (2 seconds). The volume control is a matter of course, which can be also adjusted in several steps. The controller configuration allows you to increase or decrease the volume in steps 1 (2), 1 (3), or 2 (4), with the value in parentheses being held down while holding down the volume button.
Press and hold the STOP button to mute the zone, then the LEDs on both volume buttons will light up. Press the VOL + or VOL- buttons to unmute the zone.
The controller directly calls the first 4 presets Internet radios according to the logged in HEOS account added to the HEOS Favorits mobile application.
In this way, you can very easily turn on the music in the zone with a „one click“ without having to use a mobile phone. Ideal for areas such as bathrooms, toilets, kitchens, terraces or any space where you use the Denon HEOS multiroom system. No unlocking your phone, searching for a control app, selecting the right zone and choosing music … just press one button and the music in the zone will start playing. Simple and comfortable.
The controller is made in the NIKO design in Intense white color, any design from the NIKO color range can be prepared on request.
All controller parameters such as HEOS account, control zone identification, volume steps or external input selection are done via a simple WEB interface of controller.
Technical parameters:
– 12VDC power supply
– network connection: WIFI (2.4GHz)
– recommended cable CAT5E or JYSTY2x2x0.8 for power supply
