Control your music system with
RECO StreamPlayer wall Controller
The wall controller is used for quick and comfortable control of the 4stream, iEAST Audio,VIVALDI, WiiM multiroom systems based on linkplay OS without the need to use a mobile
application.
MAIN Features
- single zone wall controller for multiroom system based on the LinkPlay
- switch zone on or off (starts last played music with PLAY button)
- volume control up and down including mute sound in zone
- direct call player presets
- activate SLEEP function
- adjustable volume steps, 3 option (configurable via web interface)
- WIFI connection 2.4GHz
- LED feedback - PLAY, STOP, MUTE and SLEEP
- trigger input for function calling (play, preset)
- simple web interface for setup controller
- works with WiiM, iEAST, Vivaldi audio, 4stream
The basic functions:
Switch music on or off in the zone; when you press the PLAY button shortly on the remote controller, the last played music starts, including online services such as Tidal or Spotify Connect. The SLEEP function is activated by holding down the PLAY button (2 seconds). The volume control is a matter of course, which can be also adjusted in several steps. The controller configuration allows you to increase or decrease the volume in steps 1 (2), 1 (3), or 2 (4), with the value in parentheses being held down while holding down the volume button. Press and hold the STOP button to mute the zone, then the LEDs on both volume buttons will light up. Press the VOL + or VOL- buttons to unmute the zone.
The controller directly calls the first 4 presets saved under the controlled player.
In this way, you can very easily turn on the music in the zone with a „one click“ without having to use a mobile phone. Ideal for areas such as bathrooms, toilets, kitchens, terraces or any space where you use the audio multiroom system. No unlocking your phone, searching for a
control app, selecting the right zone and choosing music … just press one button and the music in the zone will start playing. Simple and comfortable.

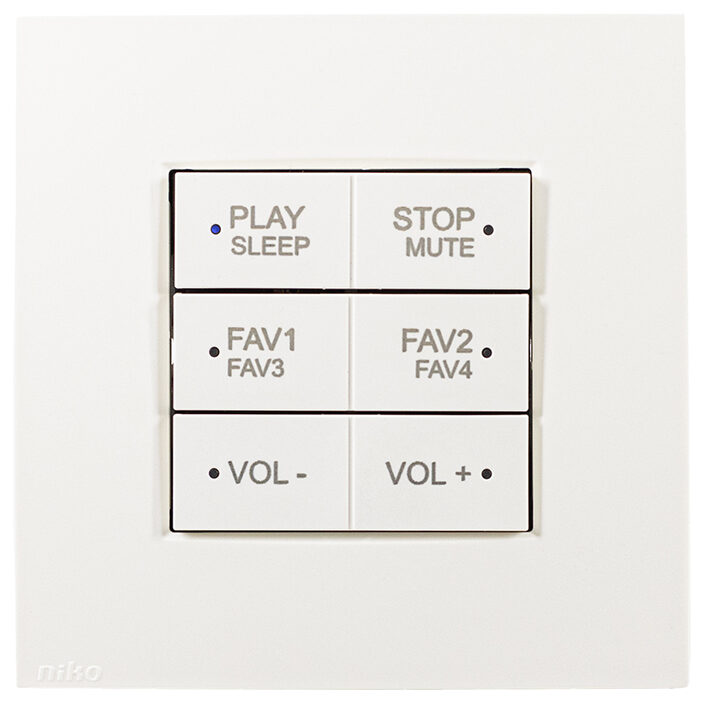

The controller is made in the NIKO design in Intense white color, any design from the NIKO color range can be prepared on request.
All controller parameters such as pair with available players on networks, control zone identification, volume steps or Sleep time are done via a simple WEB interface of the controller.
Technical parameters:
– 12VDC power supply
– network connection: WIFI (2.4GHz)
– recommended cable CAT5E or JYSTY2x2x0.8 for power supply
